The First Moment of Magic Freedom
You wind open the throttle and move forward, effortlessly. The CB125F has opened up a whole new world ahead. This motorcycle could be the beginning of your new adventure. Redesigned from the wheels up around a super-efficient eSP engine and fine-handling chassis, it’s much lighter, much more economical and still packs the same great around-town performance. Where are you going? That’s up to you. Now, you have choices.
Full Sized Experience
We’ve given the CB125F a full-sized feel, for a full-sized experience.
We’ve also cut 11kg in total, which you’ll notice when you twist the throttle and steer into a turn. Equipment includes a digital dash and LED headlight. In addition, its single-cylinder air-cooled, 2-valve eSP (enhanced Smart Power) PGM-FI fuel-injected engine has been designed tough. But it’s clever, too. That’s why it can deliver smart acceleration and fuel efficiency of 65km/l – giving a potential 800km range between fill-ups.
We know you might be riding a motorcycle to get to work, or as a way of life, an escape from the day-to-day. Either way, you may as well start something special, with each turn of the key.
Bore × Stroke (mm) 50x63.1
Carburation PGM-FI electronic fuel injection
Compression Ratio 10.0:1
Engine Displacement (cc) 123.9cc
Engine Type Air cooled 4-stroke 2-valves OHC single cylinder
Max. Power Output 7.8kW / 7,750rpm
Max. Torque 10.4 Nm / 6,250rpm
Starter Electric
Oil Capacity (Litres) 1.0
Brakes Front 240mm disc with double piston caliper
Brakes Rear 130mm drum
Suspension Front 31mm telescopic
Suspension Rear Dual shocks – 5 stage preload
Tyres Front 80/100 – 18M/C 47P
Tyres Rear 90/90 – 18M/C 51P
Wheels Front 18” six spoke cast aluminium
Wheels Rear 18” six spoke cast aluminium
Battery Capacity (VAh) 12V-5A・h
Caster Angle 26°
Dimensions (L×W×H) (mm) 2020 x 784.6 x 1103
Frame type Tubular steel
Fuel Tank Capacity (Litres) 13 litres
Fuel Consumption 66.7 km/L
Ground Clearance (mm) 160 mm
Kerb Weight (kg) 117KG
Seat Height (mm) 790 mm
Trail (mm) 92.4 mm
Wheelbase (mm) 1285
Clutch Wet, multiplate with coil springs
Final Drive Chain
Transmission Type 5 speed
Headlights 12V 35W (low), 35W (high)
Instruments Speedometer, milometer, fuel gauge, rpm counter, gear position indicator
Tail Light 12V 21W (stop), 5W (tail)
The CB125F features the signature CB-family style of a broad-shouldered fuel tank and silver side shrouds.
But it’s also got something of its own going on. There’s wind protection from the angular nose fairing and fly screen, and the blacked-out engine and exhaust make bright graphics stand out sharply. Red rear shock springs add a sporty detail.
A premium LED headlight picks out the way forward. Passengers get their own grab-rail and, for easy care of the sealed drive chain, there’s a centre stand.
Low-friction technologies are built-in, and include rocker-roller arms equipped with needle bearings for valve operation, off-set cylinder and piston oil jet cooling. The Alternating Current Generator (ACG) combines electricity generation with starting duties, saving weight.
The smart digital dash includes a gear position indicator, as well as real-time and average fuel economy, distance to empty and ECO indicator to aid efficient riding.
More aggressive styling
The angular nose fairing and fly screen cut through the air, while the broad-shouldered fuel tank features silver side shrouds, just like the CB500F.
Matte Marvel Blue Metallic

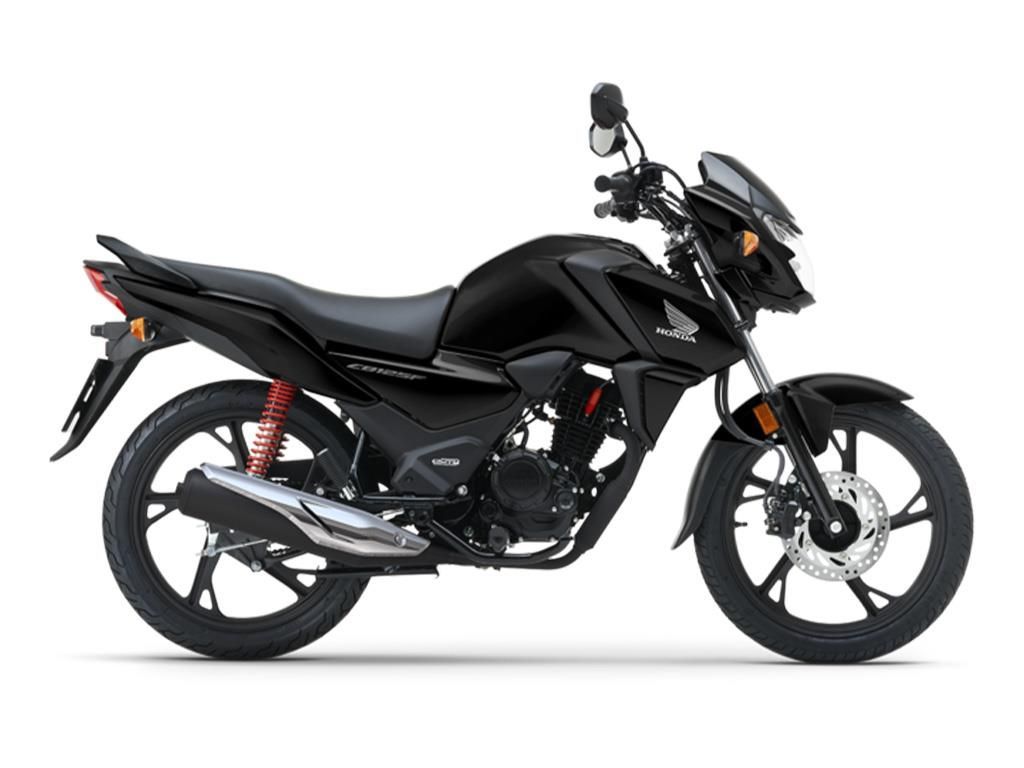

Black

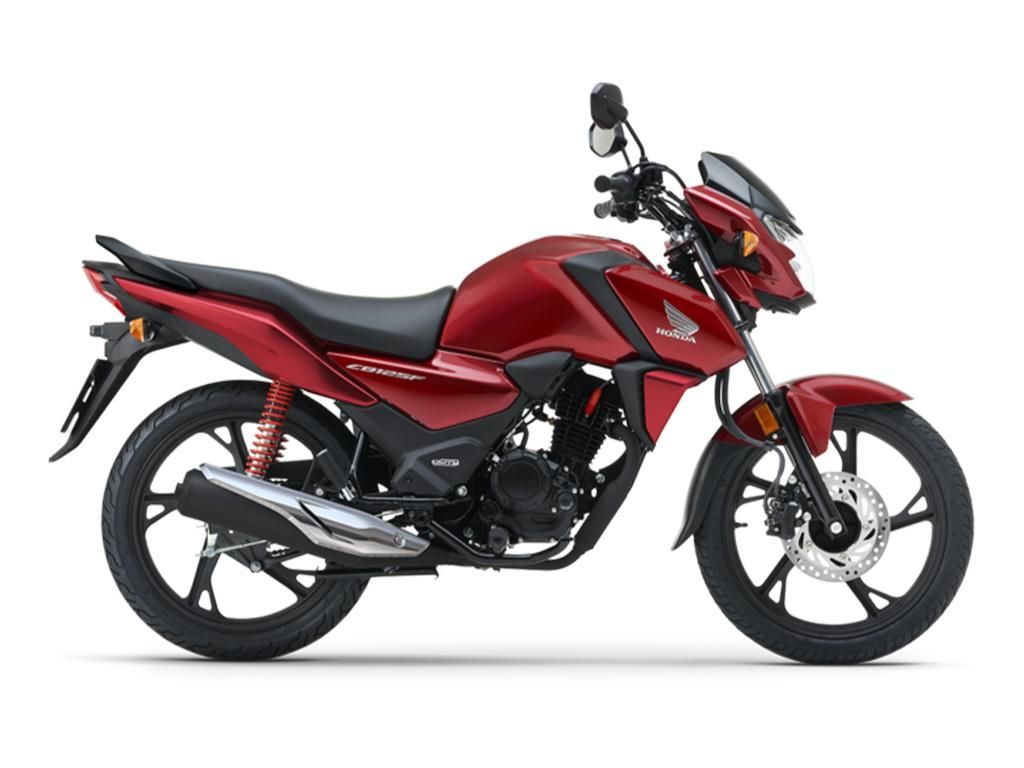

Imperial Red Metallic
