Honda CB500X

Step up to adventure

This is the moment you’ve been waiting for. It’s time to ride the CB500X. It’s loaded with rugged adventure style and striking new colour options, upgraded, high-quality long-travel suspension and brakes all powered by an A2-compliant twin-cylinder engine that puts real, enjoyable performance in your right hand. At a surprisingly satisfying price point.

Slide title

Write your caption here

Button
Slide title

Write your caption here

Button
Slide title

Write your caption here

Button
Slide title

Write your caption here

Button
Slide title

Write your caption here

Button
Slide title

Write your caption here

Button
Slide title

Write your caption here

Button
Slide title

Write your caption here

Button

Feel free to be free

This is freedom. Released from the day-to-day, to travel by motorcycle is to explore yourself, as well as the world around you. You’re moving, too. With a fresh A2 licence, ready for a new adventure on the CB500X. Each journey is unique. In the city or far beyond there’s always something different around the next corner. And there’s no better feeling.

Technical Specifications

Bore × Stroke (mm) 67mm x 66.8mm

Carburation PGM-FI electronic fuel injection

Compression Ratio 10.7:1

Engine Displacement (cc) 471cc

Engine Type Liquid-cooled 4-stroke DOHC parallel twin

Max. Power Output 35kW / 8600rpm

Max. Torque 43Nm / 6500 rpm

Starter Electric

Throttle Bore 34

C02 Emissions (g/km) 80

ABS System 2 channel

Brakes Front Dual 296 mm x 4 mm disc with Nissin radial-mount two piston calipers

Brakes Rear Single 240 mm x 5 mm disc with single piston caliper

Suspension Front Showa 41mm SFF-BP USD forks, pre-load adjustable

Suspension Rear Prolink mono with 5 stage pre-load adjuster, Steel hollow cross swingarm

Tyre Size Front 110/80R19M/C (59H)

Tyre Size Rear 160/60R17M/C (69H)

Wheels Front Multi-Spoke Cast Aluminium

Wheels Rear Multi-Spoke Cast Aluminium

Battery Capacity (VAh) 12v 7.4Ah

Caster Angle 27.5°

Dimensions (L×W×H) (mm) 2,155mmX830mmX1,410mm

Frame type Steel diamond

Fuel Tank Capacity (Litres) 17.7 L

Fuel Consumption 28.6km/L / 3.5l/100km

Ground Clearance (mm) 180mm

Kerb Weight (kg) 199kg

Seat Height (mm) 830mm

Trail (mm) 108mm

Wheelbase (mm) 1,445mm

Clutch Wet multiplate, Assisted slipper clutch

Final Drive Chain

Transmission Type 6-speed

Headlights LED

Instruments Digital Speedometer, Digital Bar Graph Tachometer, Dual Trip Meters, Digital Fuel Level Gauge & Fuel Consumption Gauge, Digital Clock, Water Temp, Gear position indicator

Tail Light LED

Security HISS

If you're ready, so is the CB500X

You know where you want to go next. And the CB500X is a perfect travel partner. Compact crossover styling gives a comfortable, upright riding position (seat height is just 830mm) ready for long days in the saddle or the daily commute. There’s plenty of range from the 17.5L fuel tank, effective wind deflection from the fairing and screen, while wide handlebars give plenty of low-speed control, perfect for trickling through busy traffic.

Supreme control wherever you go

If you’re riding smooth or rough, new Showa 41mm Separate Function Fork Big Piston (SFF-BP) USD forks split spring from damping and provide excellent suspension reaction and control. The Showa rear shock has revised spring rate and damping, while new lightweight wheels and swingarm – plus more forward-set weight bias – ensure quick steering and stability and likewise new, dual 296mm discs are worked by two-piston calipers, giving more braking power with no gain in inertia.

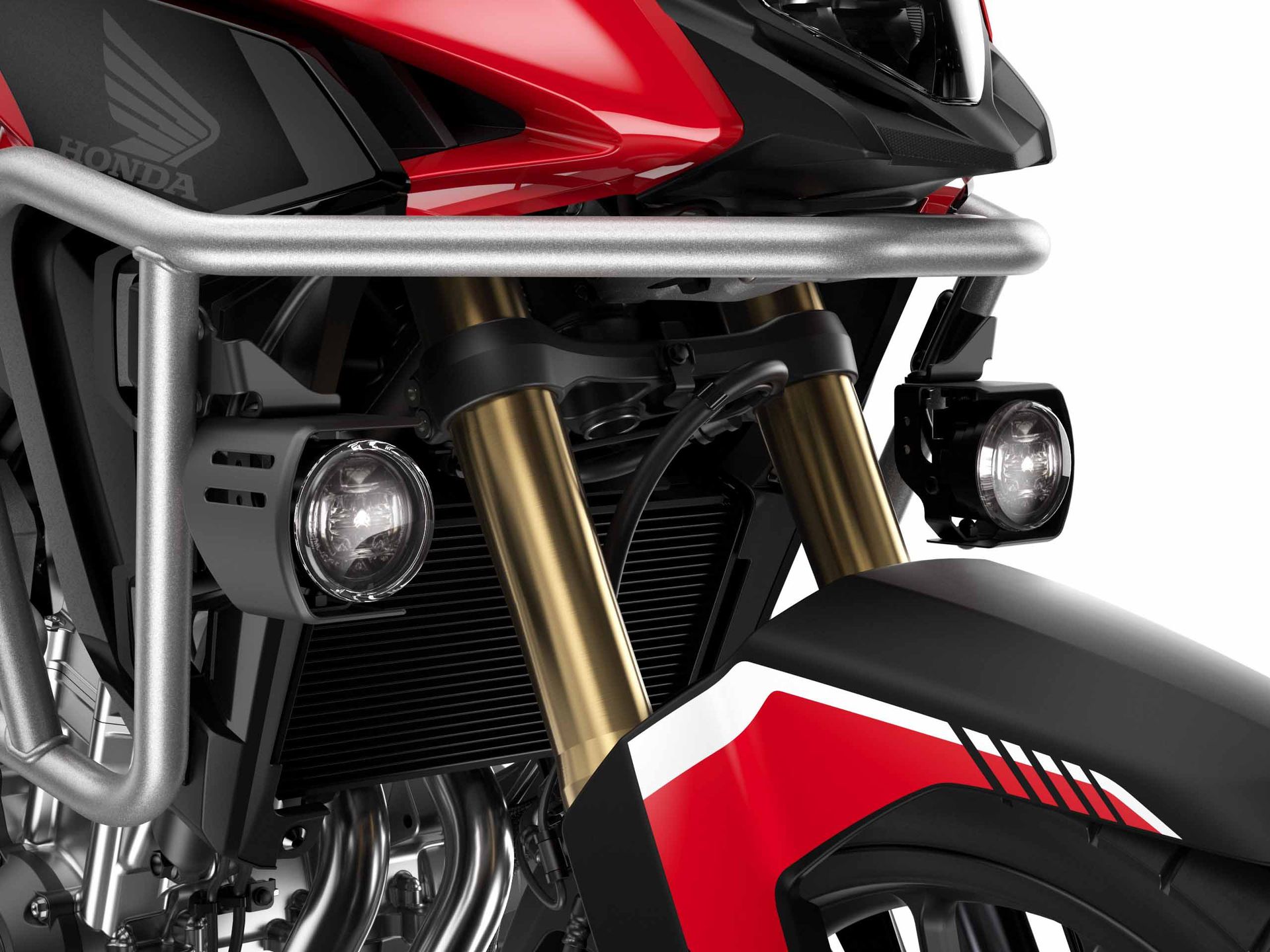

Full LED Lighting with Optimised Beams

All lighting is premium LED. The high- and low-beams are newly optimised to give an improved spread, so you see more at night. Adding extra visibility the front indicators are also now position lights.

Designed for the Journey

Long-travel suspension soaks up the hits and smooths the ride, a 19-inch front wheel adds sure-footed stability while block-pattern tyres ensure consistent grip.

Enjoyable A2 Twin-Cylinder Engine

Great for acceleration, with peak torque of 43Nm @ 6,500rpm. Its power delivery is perfect for new riders and, at high rpm, entertaining for more experienced riders.
