Since 2013, our MSX Grom (Mini Street X-Treme) has been transport of choice for a whole new generation of young riders around the world. It’s easy to see why; individual looks, compact dimensions and full-sized motorcycle-specification, suspension and brakes. Add a peppy 125cc engine, and it’s the perfect partner for busy urban life. And now, there’s a new MSX Grom on the block, with extra power, an extra gear, and even more style.
Small and Even More Perfectly Formed
The MSX Grom is a little bike that thinks big. Its new, 125cc engine makes more power and, thanks to PGM-FI fuel injection and EURO5 compliance, is clean and fuel efficient. An extra gear means you now have five speeds to choose from, making longer rides easy. Funkily refreshed (and easily-removed) bodywork is great as is – or ripe for customisation. And, just like its big brothers, the MSX Grom’s digital dash now has a rev-counter and gear position indicator.
Bore × Stroke (mm) 50.0 x 63.1
Carburation PGM-FI electronic fuel injection
Compression Ratio 10.0:1
Engine Displacement (cc) 124.9
Engine Type Air-cooled 2-valve single
cylinder
Max. Power Output 7.4kW / 7,250 rpm
Max. Torque 11.1Nm / 6,000 rpm
Starter Electric
Oil Capacity (Litres) 1.1 L
Brakes Front Single 220mm disc with hydraulic dual-piston brake caliper
Brakes Rear Single 190mm disc with hydraulic single-piston brake caliper
Suspension Front USD Front Forks, 31mm
Suspension Rear Mono shock, steel square pipe swingarm
Tyre Size Front 120/70R12 51L
Tyre Size Rear 130/70R12 56L
Wheels Front 12 X MT2.75 5-Spoke Aluminium Cast
Wheels Rear 12 X MT 3.50 5-Spoke Aluminium Cast
Battery Capacity (VAh) 12V 3.5Ah
Caster Angle 25°
Dimensions (L×W×H) (mm) 1760 x 720 x 1015
Frame type Steel mono-backbone frame
Fuel Tank Capacity (Litres) 6 litres
Fuel Consumption 66.7 km/l
Ground Clearance (mm) 180 mm
Kerb Weight (kg) 103 kg
Seat Height (mm) 761 mm
Trail (mm) 81 mm
Wheelbase (mm) 1200 mm
Turning Radius 1.9 metres
Clutch Wet multiplate
Final Drive Chain
Transmission Type 5 speed
Headlights LED
Tail Light LED
Instruments LCD digital dash with speedometer, twin trip meters, fuel gauge and clock.

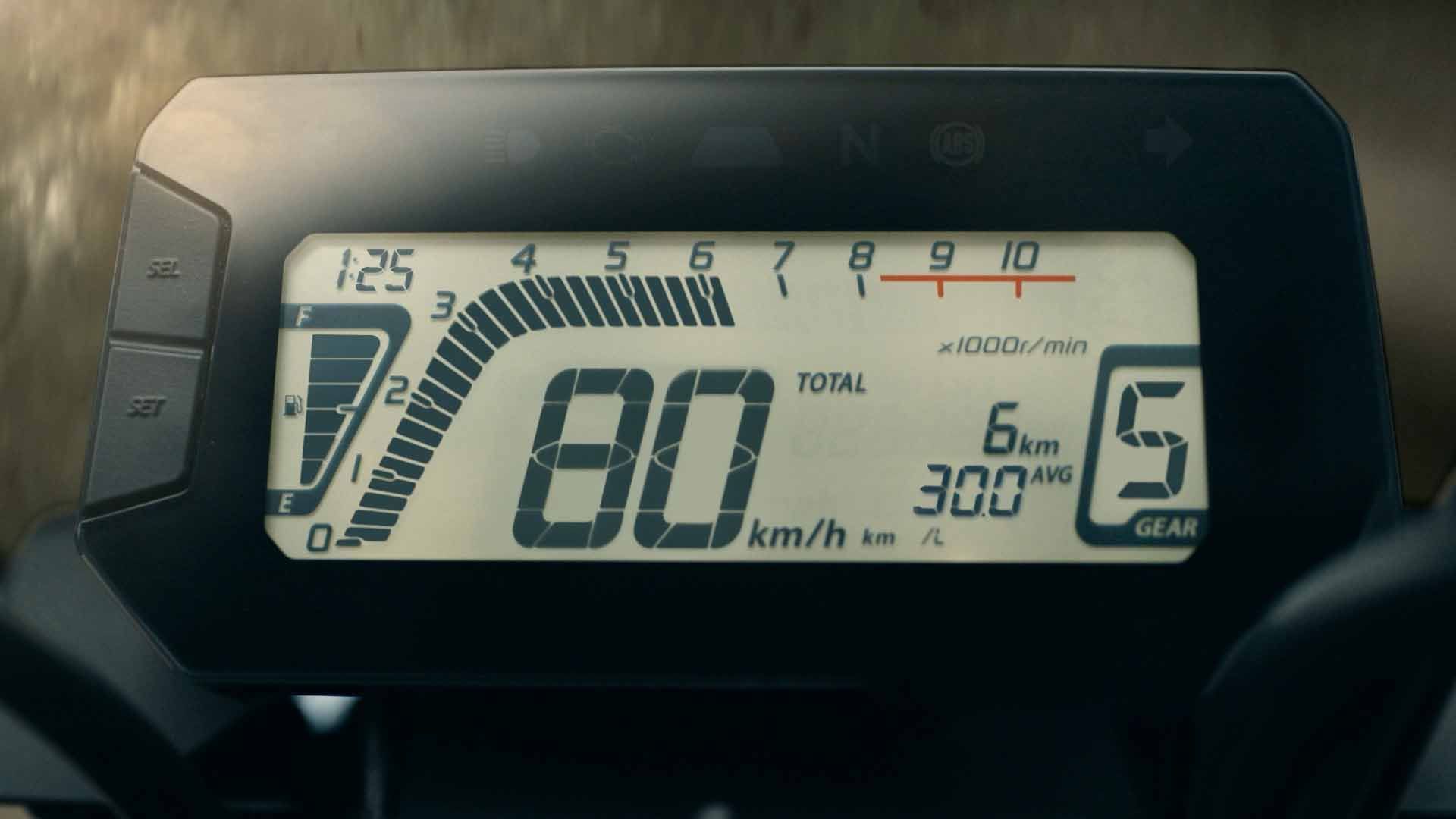

The sleek LED headlight carves out a unique light signature. Easy to read for its compact size, the LCD digital dash has been redesigned to include a rev-counter and gear position indicator, alongside the speedometer, twin trip meters, fuel gauge and clock.
The new, 125cc air-cooled, two-valve engine packs a perfect blend of punchy roll-on performance with useful, all-round usability. It makes 7.2kW peak power but, as always, is all about the fun of twisting a throttle. Another upgrade that riders will appreciate is a 5-speed gearbox, to spread the ratios further and top speed goes from 92km/h to 95km/h. Manual clutch operation imparts a full-sized motorcycle experience.
The 31mm Up Side Down (USD) forks reduce unsprung weight and, thanks to the pistons’ greater pressure-bearing area (compared to standard telescopic forks) offer improved damping feel throughout the stroke. Both top and bottom yokes are full-sized, further enhancing handling and feel, while a lightweight and robust single rear shock operates a simple and tough, H-shape, steel box-section swingarm.
Sturdy chassis
A steel mono-backbone frame ensures core strength, and also provides easy handling for new riders, plus an enjoyable ride for those more experienced. Its rigid, square-section tube joins the headstock directly to the swingarm pivot plates, and every other part in effect hangs visibly from the frame, building the minimalist look.

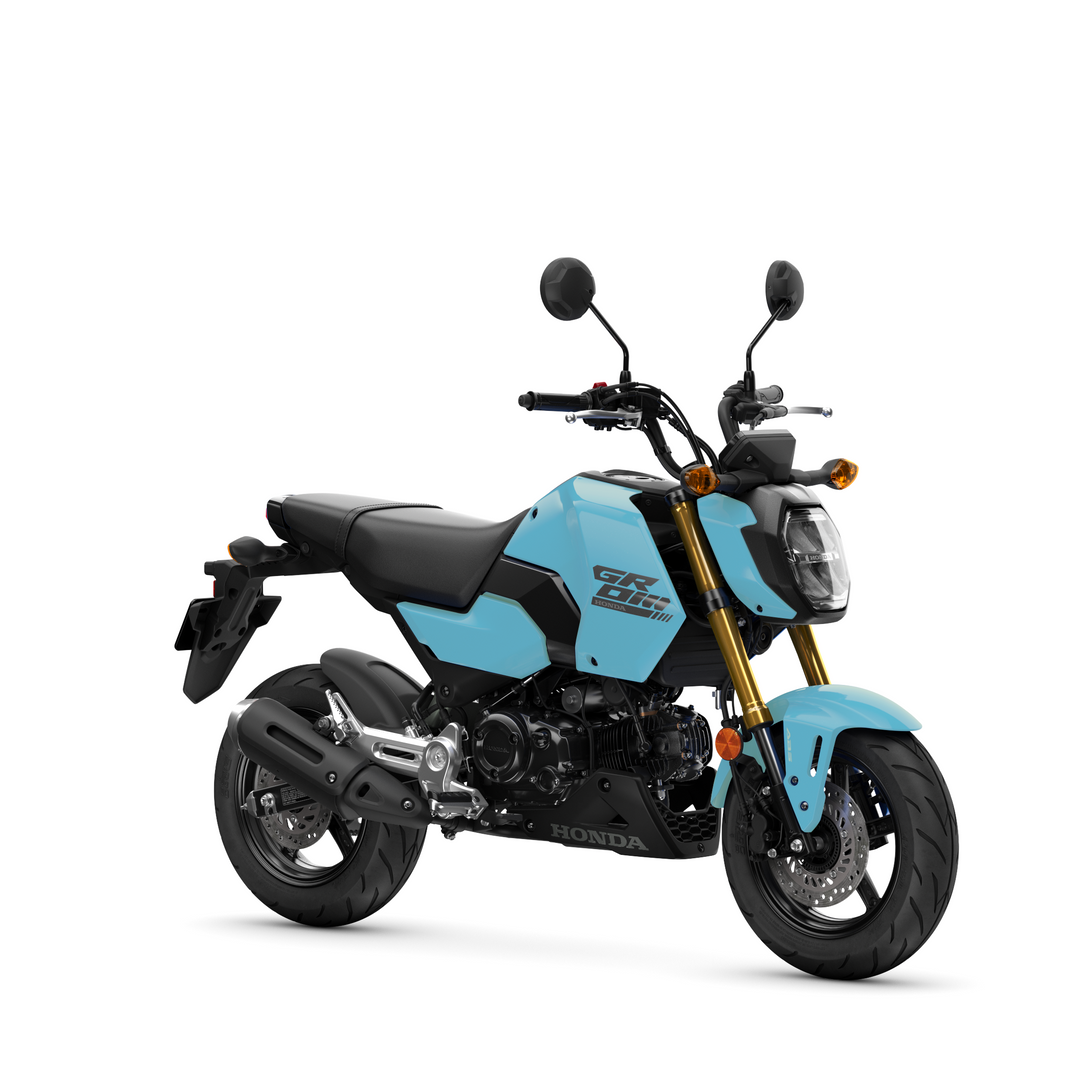

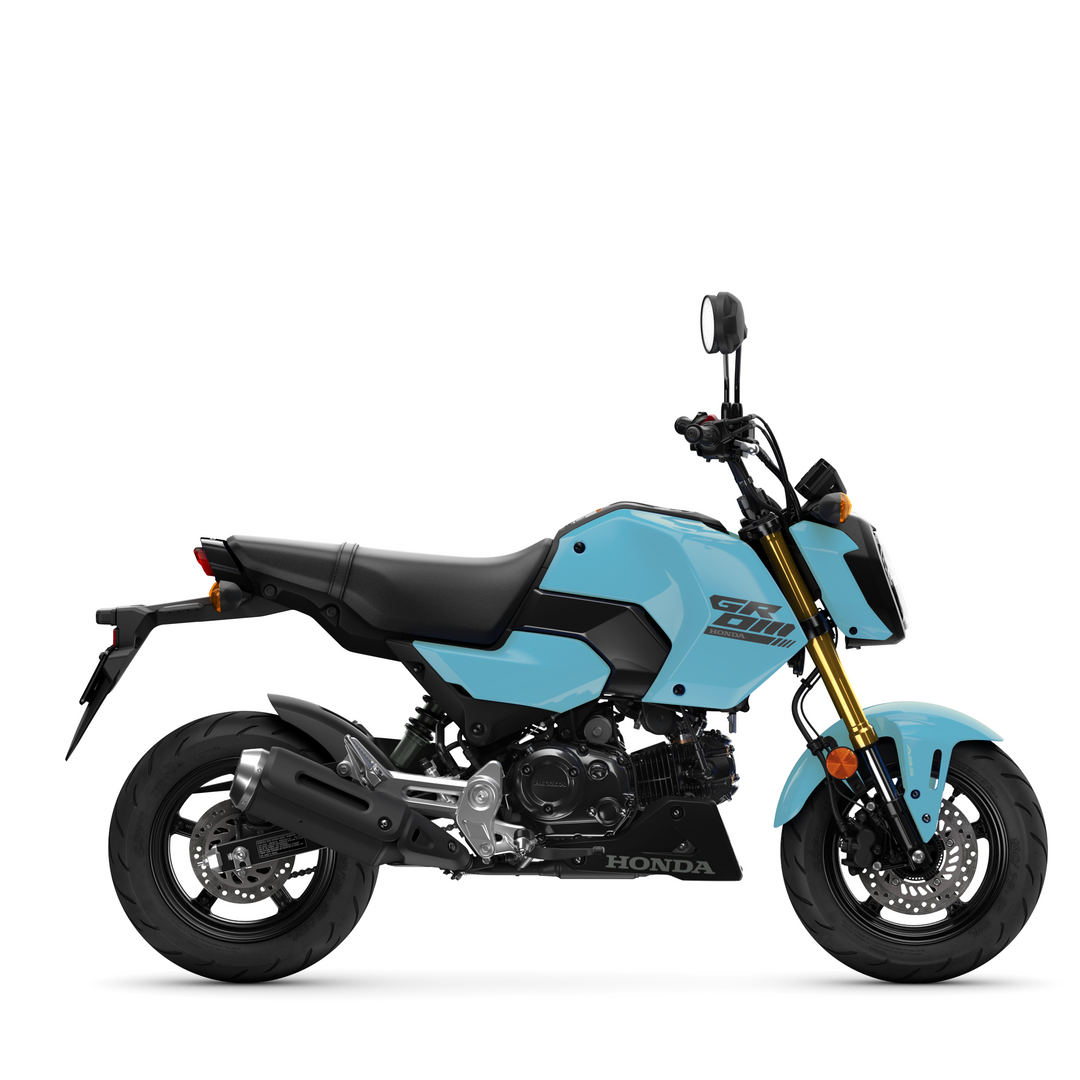

Splendid Blue

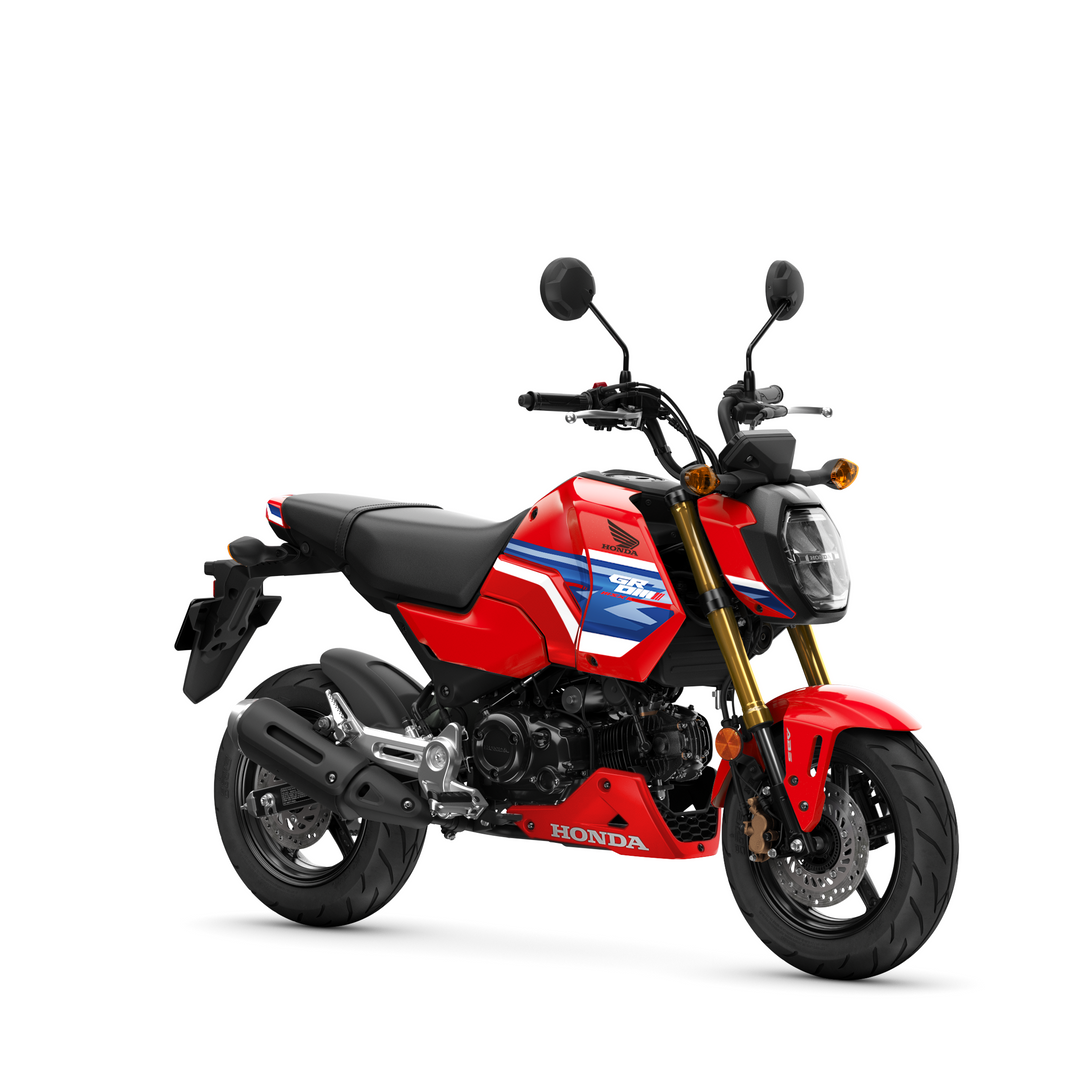

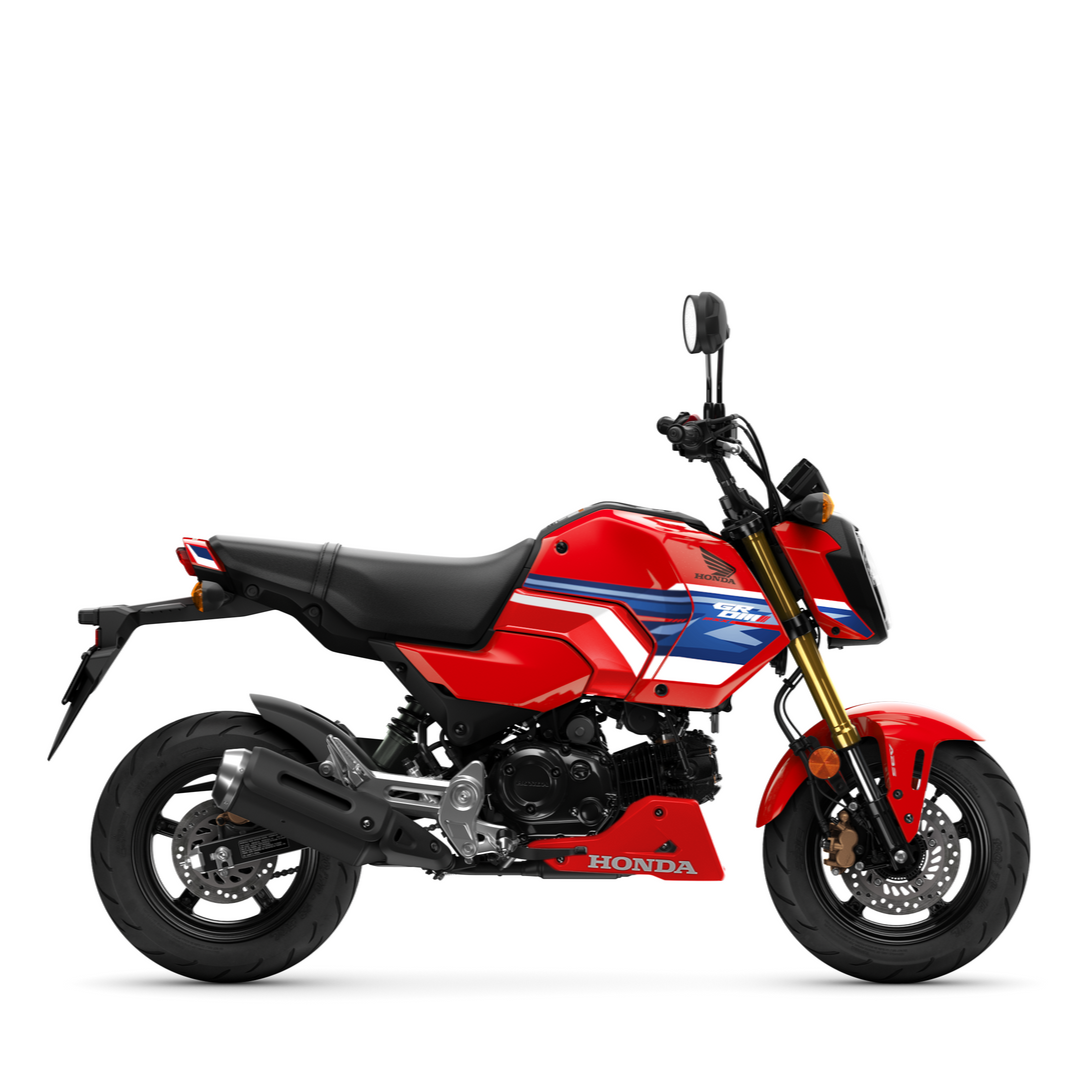

Pearl Gayety Red
Matte Dim Grey Metallic
