New Experience
Where to? Your choice. The compact, versatile new NX500 offers perfect city agility and off-road ability. It’s comfortable too, with an aggressive, rally-style fairing and large screen shaped for wind protection. High specification technology includes 5-inch TFT screen with Honda RoadSync smartphone connectivity. And its A2-compliant twin-cylinder engine delivers flexible – hugely enjoyable – performance with HSTC traction management. The adventure begins.
Go Short. Go long.
Go where you choose. Effortlessly at home in the city but built for adventure, the rugged NX500 blends a tough off-road silhouette with modern off-road-inspired design. Long-travel suspension absorbs the urban rough and tumble just as it does gravel trails helped by new, lightweight wheels. The 17.7L fuel tank holds plenty of range. And a relaxed riding position – and natural control of wide handlebars – are matched to an aerodynamic package that neatly channels airflow.
Bore × Stroke (mm) 67mm x 66.8mm
Carburation PGM-FI electronic fuel injection
Compression Ratio 10.7:1
Engine Displacement (cc) 471cc
Engine Type Liquid-cooled 4-stroke DOHC parallel twin
Max. Power Output 35kW / 8600rpm
Max. Torque 43Nm / 6500 rpm
Starter Electric
Throttle Bore 34
C02 Emissions (g/km) 82
Oil Capacity (Litres) 3.2
ABS System 2 channel
Brakes Front Dual 296 mm x 4 mm disc with Nissin radial-mount two piston calipers
Brakes Rear Single 240 mm x 5 mm disc with single piston caliper
Suspension Front Showa 41mm SFF-BP USD forks, pre-load adjustable
Suspension Rear Prolink mono with 5 stage pre-load adjuster, Steel hollow cross swingarm
Tyre Size Front 110/80R19M/C (59H)
Tyre Size Rear 160/60R17M/C (69H)
Wheels Front 19M/C X MT2.5 Multi-Spoke Cast Aluminium
Wheels Rear 17M/C X MT4.5 Multi-Spoke Cast Aluminium
Battery Capacity (VAh) 12v 7.4Ah
Caster Angle 27.5°
Dimensions (L×W×H) (mm) 2,165mmX830mmX1,415mm
Frame type Steel diamond
Fuel Tank Capacity (Litres) 17.7 L
Fuel Consumption 27.8km/L / 3.6l/100km
Ground Clearance (mm) 180mm
Kerb Weight (kg) 196kg
Seat Height (mm) 830mm
Trail (mm) 108mm
Wheelbase (mm) 1,445mm
Clutch Wet multiplate, Assisted slipper clutch
Final Drive Chain
Transmission Type 6-speed
Headlights LED
Instruments Digital Speedometer, Digital Bar Graph Tachometer, Dual Trip Meters, Digital Fuel Level Gauge & Fuel Consumption Gauge, Digital Clock, Water Temp, Gear position indicator
Tail Light LED
Security HISS
Comfortable reach and contro, with 250mm ground clearance giving the NX real adventure capability.
Easy to manage at walking pace, and through traffic, with reassuring stability on the highway.
For the sure-footed feel to ride on over rough surfaces and consistent, confidence-inspiring grip.
This bike’s got your back. The 5-inch full-colour TFT display is all new, operated by a backlit switchgear with a very natural hand position allowing better visibility in all conditions. Both have been designed together for easy use, and the screen is engineered to minimise glare in bright sunlight. It also offers full connectivity through the Honda RoadSync app. A first in class, for Android and iOS smartphones, it means you can access on-screen turn-by-turn navigation, make and receive calls or listen to music while you ride.
On the road, HSTC manages rear wheel traction in all conditions, especially in the rain. On dirt or gravel it can be switched off completely, for maximum drive.
Throws out strong beam penetration and wide light distribution either side – which means you see a lot more when cornering at night.
For enhanced comfort over a long day’s ride the purposeful fairing and tall screen combine to direct airflow neatly over and around. Sharp graphics add a hint of competition style.
New optical bonding technology to reduce glare and improve readability, the new 5-inch screen is intuitive to use and features the smartphone connectivity of Honda Roadsync.

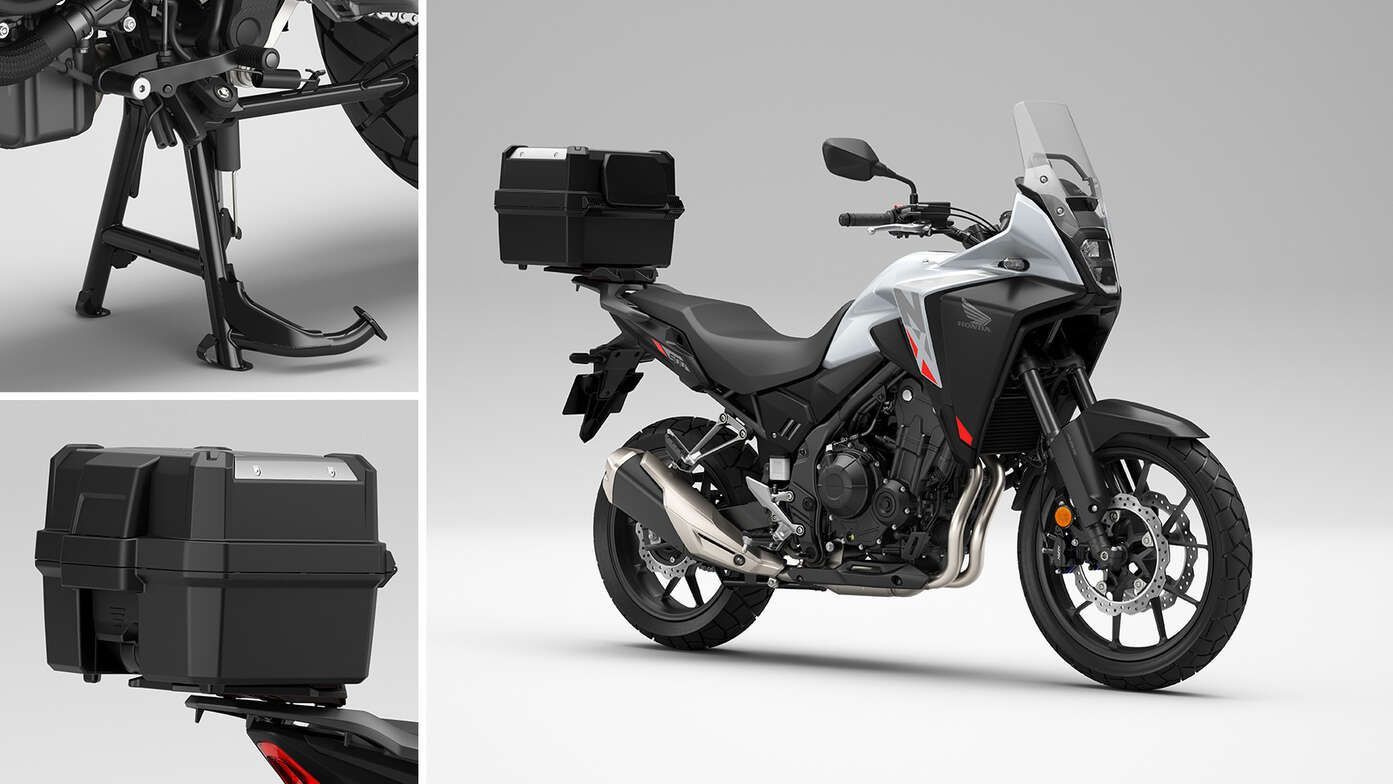

If you’re in and out of town on a daily basis this is the perfect setup; a 38L Top Box offers plenty of storage space (enough for a full-face helmet) and comes complete with Pillion Backrest and handy Inner Bag.

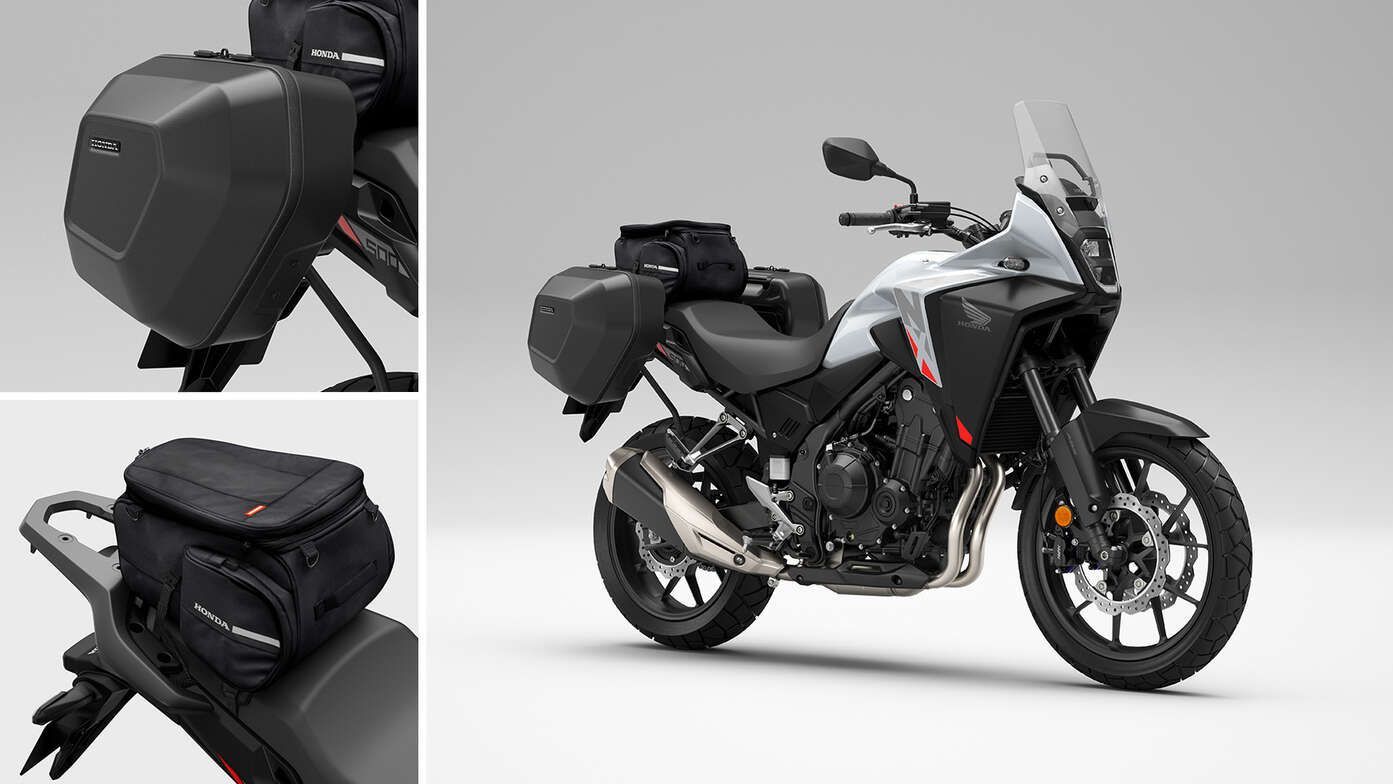

Travel is what the NX500 is made for, so the dual Soft Panniers, Tank Bag and Rear Seat Bag add flexible carrying capacity that’s easy to attach and remove.
Build in even more practicality. Heated Grips take the cold out of winter days and Wind Deflectors help keep weather away. An ACC Socket charges whatever you need and a Main Stand ensures fuss-free chain maintenance.

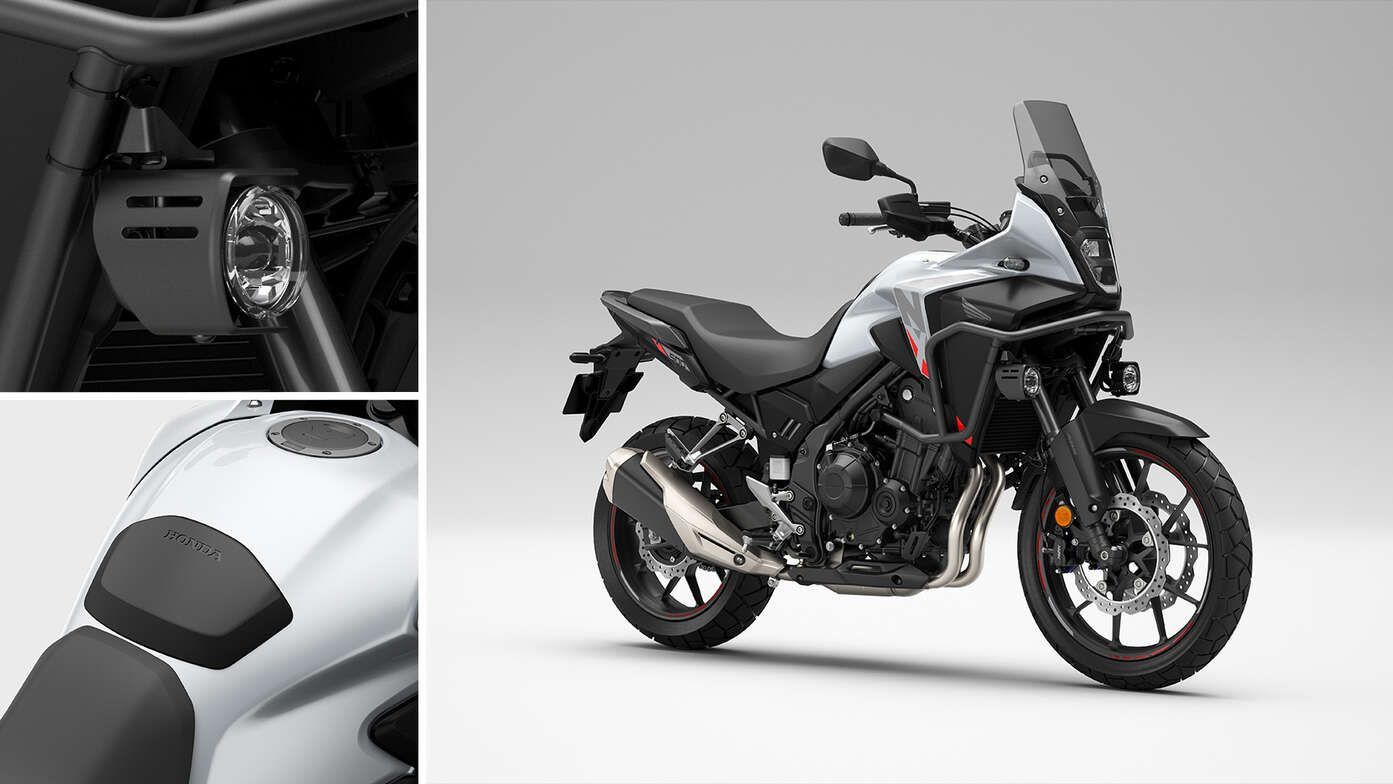

Prepare for the rigours of the open road. Fog Lights mark out the NX500 to other road users at a distance, Knuckle Guards protect hands while the Smoked Screen and Wheel Stripes add style. The Tank Pad shields paint from zip damage.

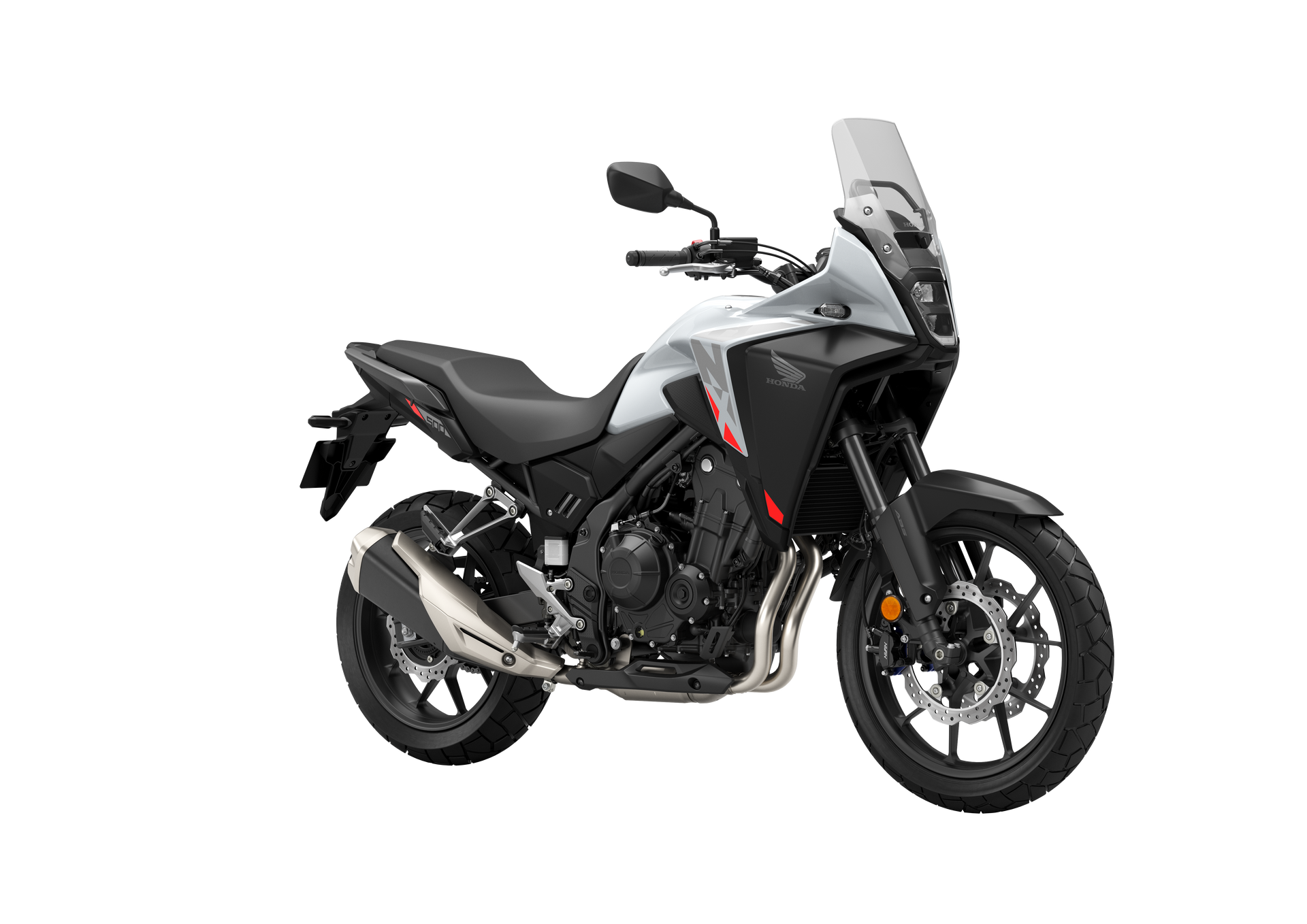

Pearl Horizon White

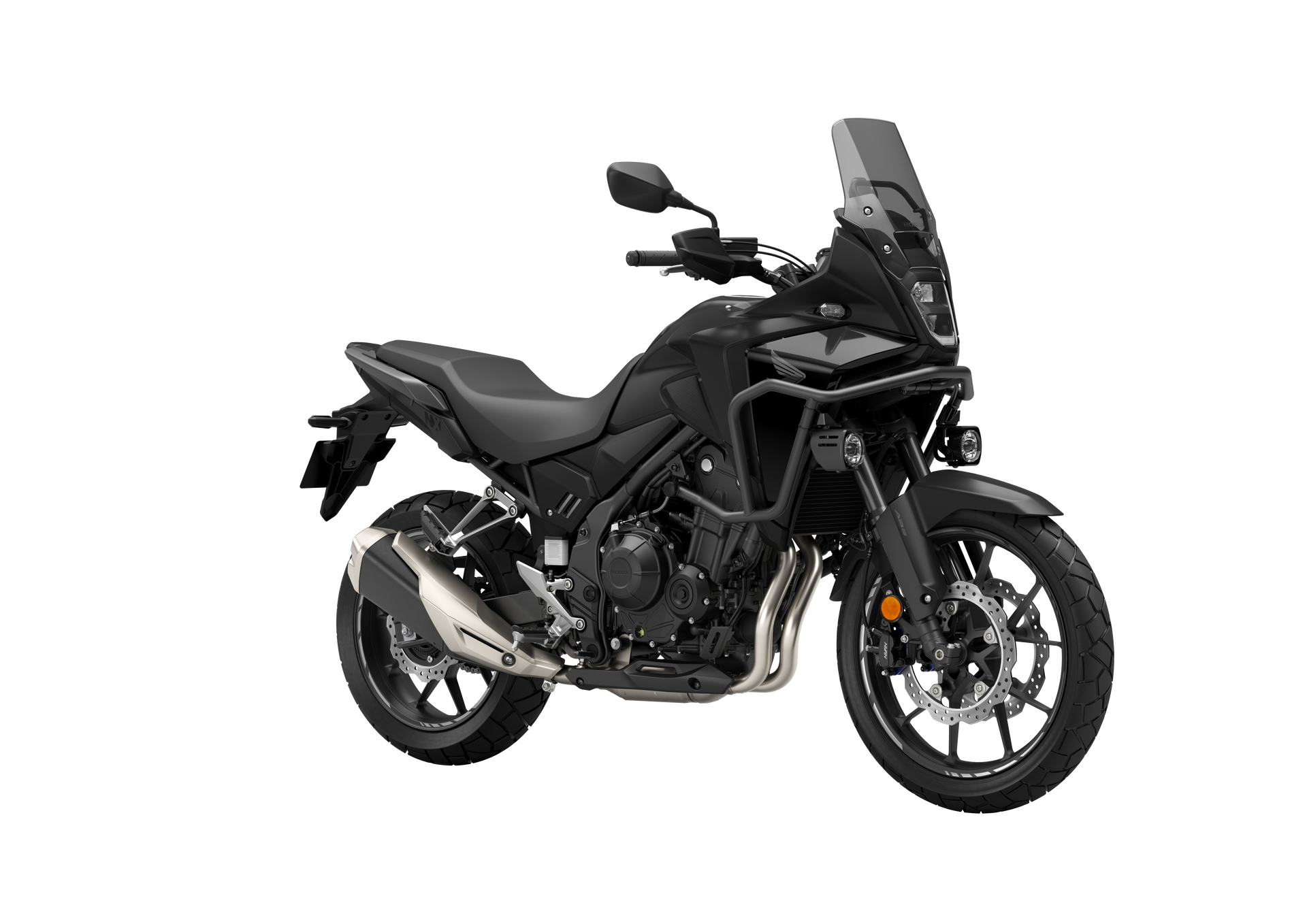

Matte Gunpowder Black Metallic

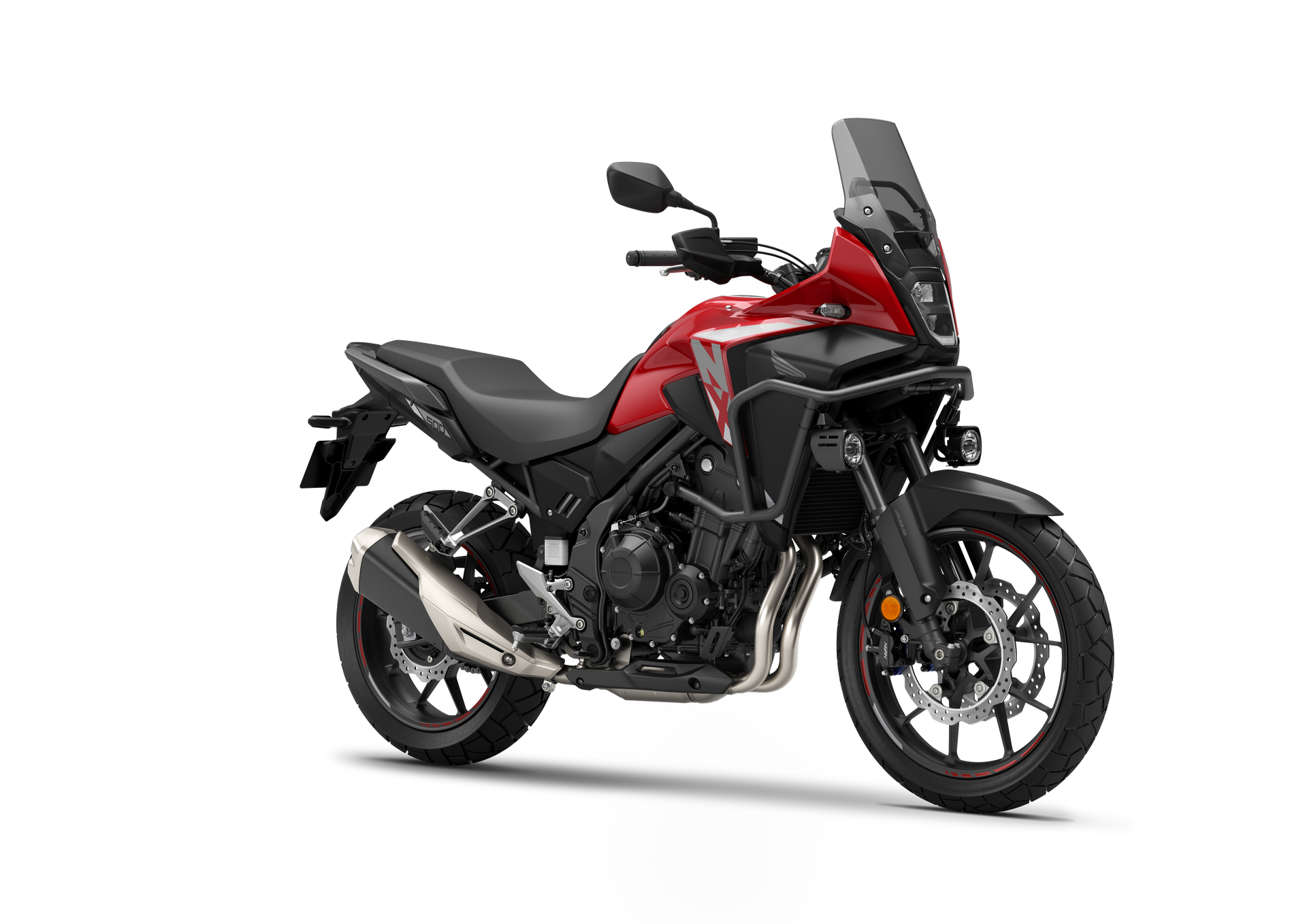

Grand Prix Red
